Catalytic Converter Location Guide
The catalytic converter is located in the underside of your vehicle, between the exhaust manifold (connected to the engine) and the muffler (near the rear). Its exact position varies by vehicle type, engine configuration, and emissions requirements. Knowing where your catalytic converter is located is important for visual inspection, theft prevention, and understanding repair estimates.
Location by Vehicle Type
Sedans and compact cars: Typically located 1-3 feet behind the engine, roughly below the front passenger seat area. On 4-cylinder vehicles, there's usually one converter. V6 models may have two — one for each exhaust bank.
Trucks and SUVs: With higher ground clearance, converters are more visible and accessible from underneath. Full-size trucks often have converters mounted further back, closer to the transmission crossmember. This higher accessibility is why trucks are frequent targets for converter theft.
Sports cars and performance vehicles: Some place converters very close to the engine (close-coupled design) for faster catalytic light-off. Turbocharged vehicles often have a converter immediately after the turbocharger downpipe. Mid-engine vehicles have converters located centrally underneath the chassis.
How to Find Yours

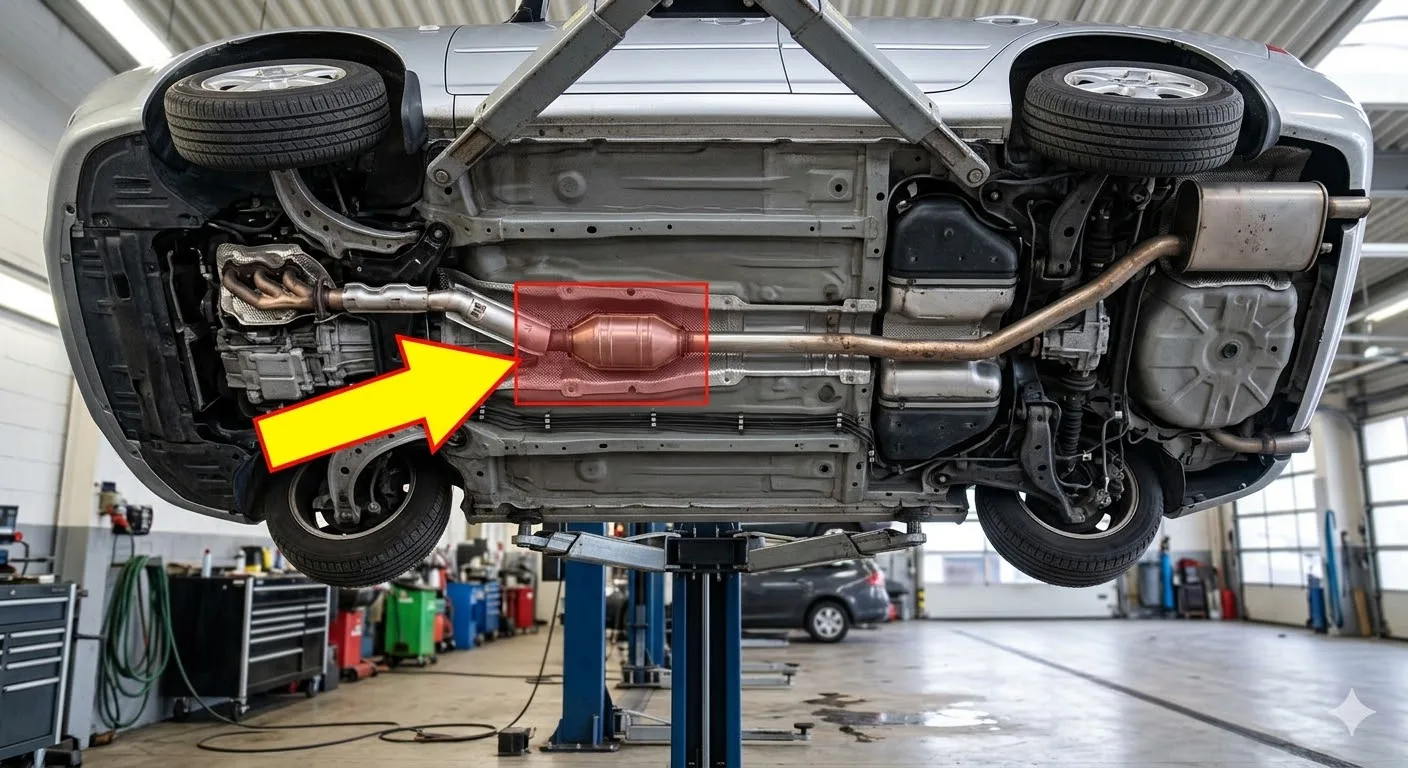

The safest way to locate your converter is to look underneath your vehicle (with the car safely supported on jack stands or a lift). The converter looks like a small metallic canister or bulge in the exhaust pipe. It's typically wider than the surrounding exhaust pipes and may have a heat shield (metal plate) covering it. You may also spot the upstream and downstream oxygen sensors screwed into the exhaust pipe near the converter.
Vehicles with Multiple Converters
Many modern vehicles have two or more catalytic converters. V6 and V8 engines with dual exhaust systems typically have one converter per bank. Some vehicles also have a secondary converter further downstream. Luxury vehicles and trucks like the Dodge Ram can have up to four converters. More converters means better emissions control but higher replacement costs if they fail.
